Huayu High Speed Plastic Water Tank Making Machine 3000L-3layers with PCL Moog Control System
| Herkunftsort | China |
|---|---|
| Markenname | Huayu |
| Zertifizierung | CE,TUV,ISO9001，SGS |
| Modellnummer | HYBM-3000L |
| Min Bestellmenge | 1 Set |
| Preis | negotiable |
| Verpackung Informationen | Die Maschine wird für den Containertransport in viele Teile zerlegt. |
| Lieferzeit | 4 MONATEN |
| Zahlungsbedingungen | L/c, t/t |
| Versorgungsmaterial-Fähigkeit | 40Sets/Jahr |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Kapazität | 750 bis 3000 L | Schicht | 3 Schichten |
|---|---|---|---|
| Verfügbare Produktion | 750-3000L Kunststoffprodukt | Material | HDPE |
| Stromspannung | kommt darauf an | Steuerungssystem | PCL+Moog |
| Hervorheben | Huayu high speed water tank machine,plastic water tank making machine 3000L,PCL Moog control water tank machine |
||
Produkt-Beschreibung

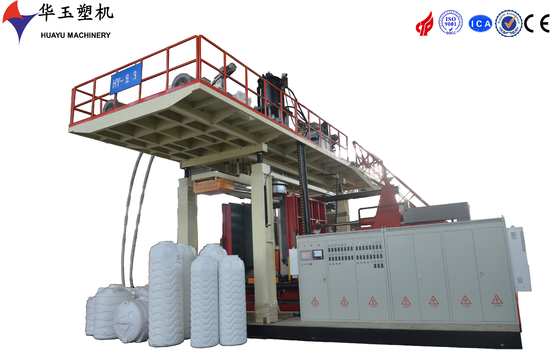

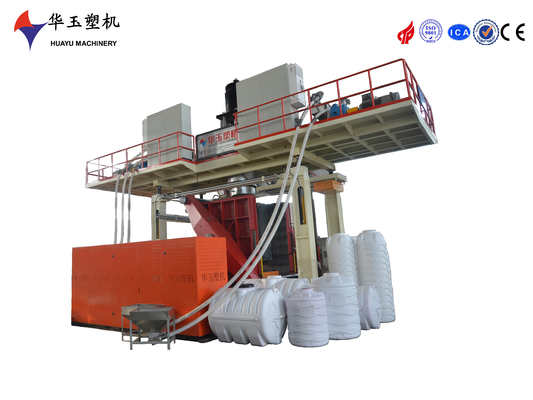

HYBM-3000L-3water tank blow moulding machine
machine specification of 3000L-3
|
3000L water tank machine |
3 | |
| Capacity rang | L | 500-3000 |
| Machine dimension | M | 10*6.5*7.8 |
| Average | KW | 247 |
| Total power | KW | 475.5 |
| Accumulator capacity | KG | 90 |
| Extruder motor | KW | 55/132/55 |
| Screw diameter | MM | 100/130/100 |
| Screw L/D ratio | 28:1 | |
| Plasticizing capacity | KG/H | 580 |
| Platen size | MM | 2100*2200 |
| Platen distance | MM | 110-3200 |
| Clamping force | KN | 2200 |
| Servo motor | KW | 55 |
1. Company profile
Weifang Huayu Plastic Machinery Co. Ltd. was founded in 2002, a manufacturer specialized in super large automatic blow moulding machines. The company intergrates the leading technique and concept at home and abroad, specializing in the design, production, and sales of large automatic blow moulding machine from one to ten layers products.

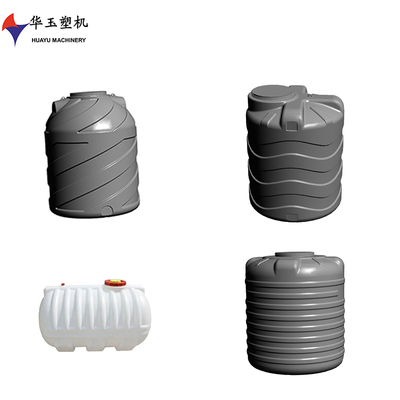

Our company's blow molding machines can produce various types of plastic water tanks ranging from 25 liters to 30000 liters, including IBC, double ring drum, road barrel, road cone, isolation wall, pallet, table board, float, kayak, toolbox and other hollow products. The excellent quality, stable performance, and superior cost-effectiveness of the company's products not only sell well in the domestic market, but also export to more than 80 countries and regions such as Asia, Southeast Asia, the Middle East, Europe, North America, South America, and Africa, receiving high praise from customers.
At present, our company has made breakthrough progress in the technology of multi-layer storage die heads, filling multiple gaps in the domestic blow molding industry. We will continue to devote ourselves to research and development in the field of blow molding, and strive to build an international brand in the blow molding industry.

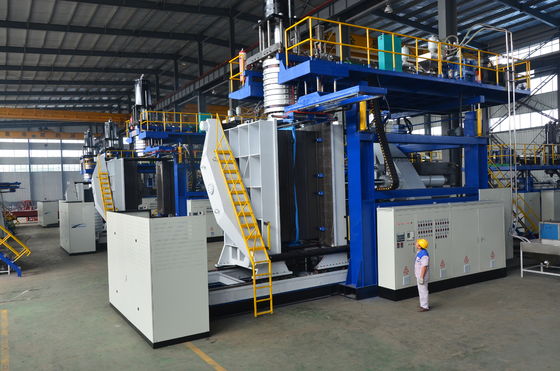

2.Machine details
Integral electric cabinet, equipped with air conditioner, can adapt to abnormal weather working environment
Siemens remote control system,Equipped with Schneider soft starter
12’Siemens touch screen+World advanced MOOG parison thickness control system
The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation
3. customer feedback
