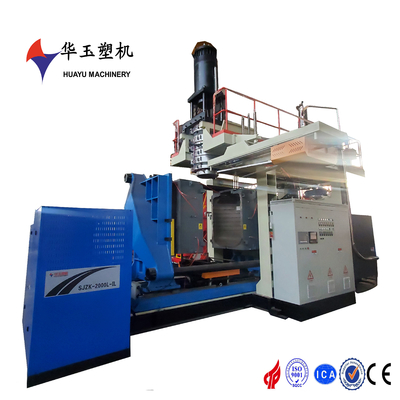

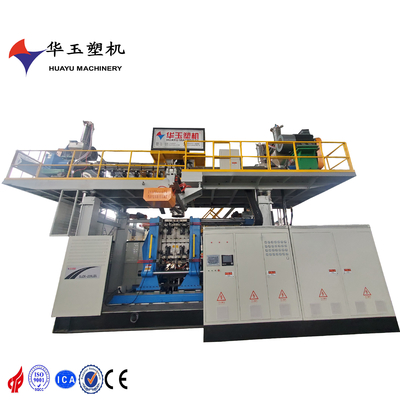

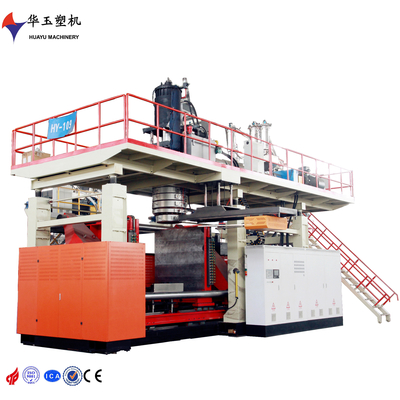

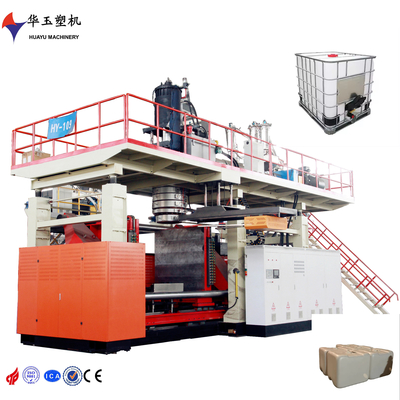

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
| Herkunftsort | CHINA |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM5000-8 |
| Min Bestellmenge | 1 Set |
| Preis | 600000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | L/c, t/t |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Farbe | Gewohnt | Ausdehnen des Anschlags | je nach Erzeugnissen |
|---|---|---|---|
| Formschlag | 1000 mm | Anwendungsfeld | Flüssiges Verpacken |
| Zustand | Neu | Reichweite | Wassertank |
| Schichten | 4 Schichten | Plattengröße | 1800*2100 mm |
| Klemmkraft | 800kn | Blasart | Extrusionsblasenformen |
| Klemmzylinder | 320+160*2 | Parison-Kontrolle | MOOG 200 Punkte |
| Trichtermaterial | Edelstahl | Durchschnittlicher Stromverbrauch | 300 kW |
| Kapazitätsbereich | 500-5000L, 8Layer | ||
| Hervorheben | 5000L water tank blow molding machine,8-layer energy-saving blow molding machine,large water tank machine with cooling system |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This energy-saving blow molding machine with a 5000L capacity and 8-layer co-extrusion is designed to optimize energy usage. The water tank system ensures rapid and effective cooling, reducing energy consumption and operational costs. The machine's advanced control system provides precise control over the molding process, ensuring high-quality products. Its durable construction and reliable performance make it suitable for large-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2400*2500*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2200mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1600-4000mm |
|
|
寸max. mould size |
1800*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
