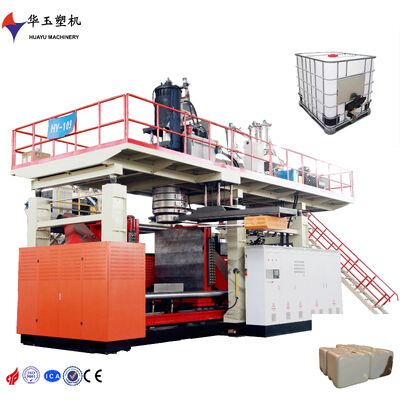

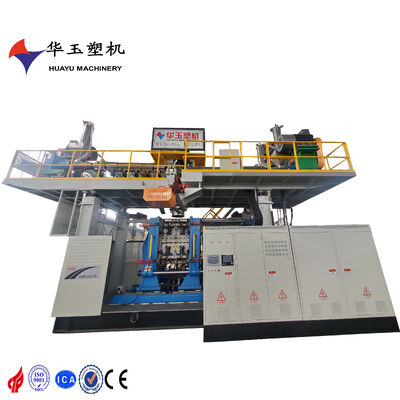

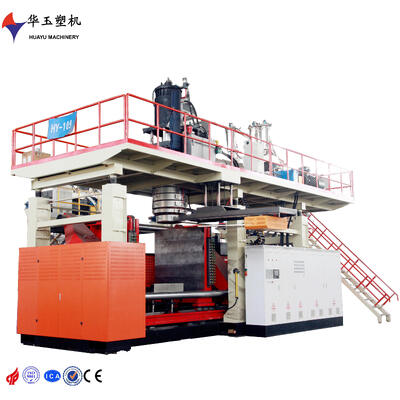

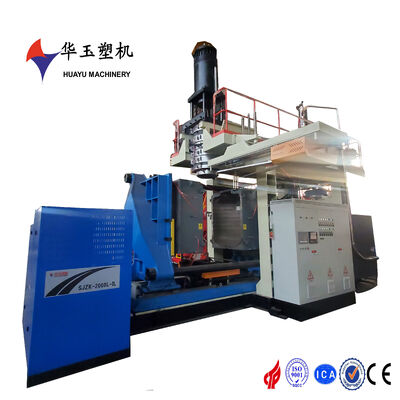

3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
| Herkunftsort | CHINA |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | IISO9001 CE |
| Modellnummer | HYBM3000-8 |
| Min Bestellmenge | 1 Set |
| Preis | 440000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monrhs |
| Zahlungsbedingungen | T/t, l/c |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Anwendung | Wasserbehälterproduktion | Material | HDPE |
|---|---|---|---|
| Plattenabstand | 2300-5500MM | Zylinderverschluss | 2000 mm |
| Maximalvolumen | 10-25L | Maschinengröße | 2.8x1.65x2,3m |
| Heizleistung schrauben | 4.4kw*15 | Dimension | 5000x3000x4000mm |
| Automatisierungsstufe | Vollautomatisch | Garantie | 1 Jahr |
| Schimmelpilzhöhle | Single/Multi | Temperaturregelung | SPS -Modul |
| Hohles Teilvolumen | 500-2000L | Größe | angepasst |
| Extrudertyp | Einzelschraube | ||
| Hervorheben | 3000L water tank blow molding machine,8-layer high-speed blow molding machine,large water tank machine with rapid cooling |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This high-speed blow molding machine with a 3000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1700L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump 200CC |
|
|
main oil pump motor |
75kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
11kw |
|
