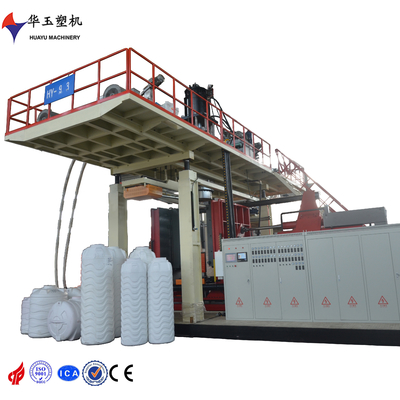

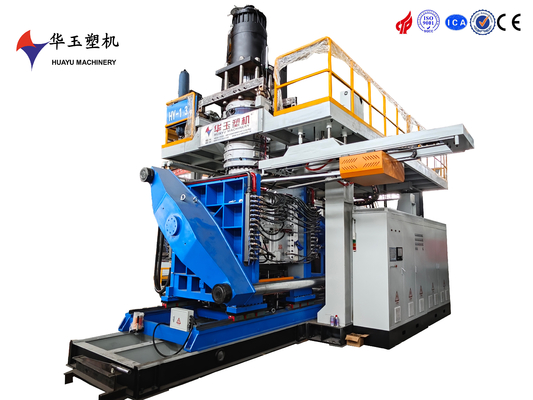

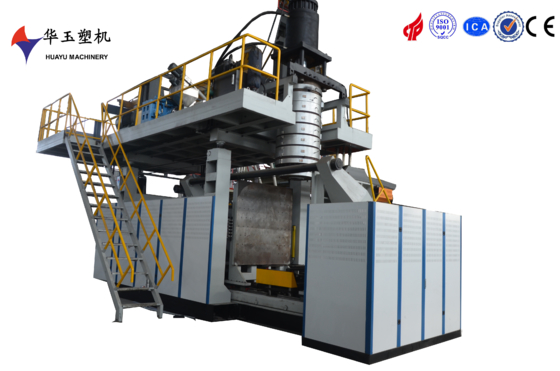

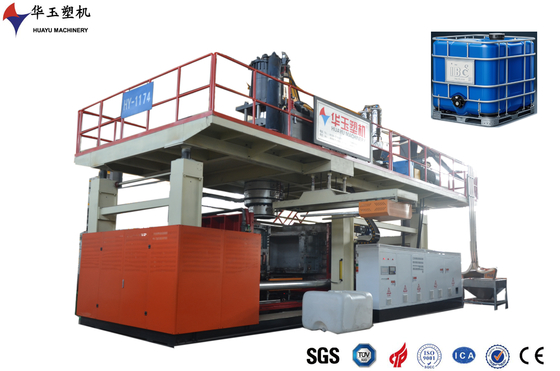

5000L 5-Layer Large Heavy-Duty Water Tank Blow Molding Machine with Heavy-Duty
| Herkunftsort | CHINA |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM5000-5 |
| Min Bestellmenge | 1 Set |
| Preis | 500000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | L/c, t/t |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Fütterungsmotor | 1.5kw*4 | Kühlmethode | Durchlaufwasser |
|---|---|---|---|
| Automatisierungsstufe | Vollautomatisch | Kapazitätsbereich | 2000l |
| After Sales | Übersee -Service | Maschinenart | Wasserbehälter-Blasformmaschine |
| Klemmzylinder | 350+200*2 | Automatisch | Ja |
| Maximalvolumen | 5 L | Größe | angepasst |
| DIE-Head-Heizung | 60 kW | SPS -Marke | Siemens |
| Materielle Quelle | HDPE, PP, PVC, Hüften, ABS | Getriebe | Guomao |
| Regler | SPS+Touchscreen | ||
| Hervorheben | 5000L water tank blow molding machine,5-layer heavy-duty blow molding machine,large water tank molding machine with warranty |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This heavy-duty blow molding machine with a 5000L capacity and 5-layer co-extrusion is designed for large-scale production of heavy-duty plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's robust construction and advanced control system offer precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, heavy-duty plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2200*2400*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
200+300*2 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1700*2200mm(W*H) |
|
