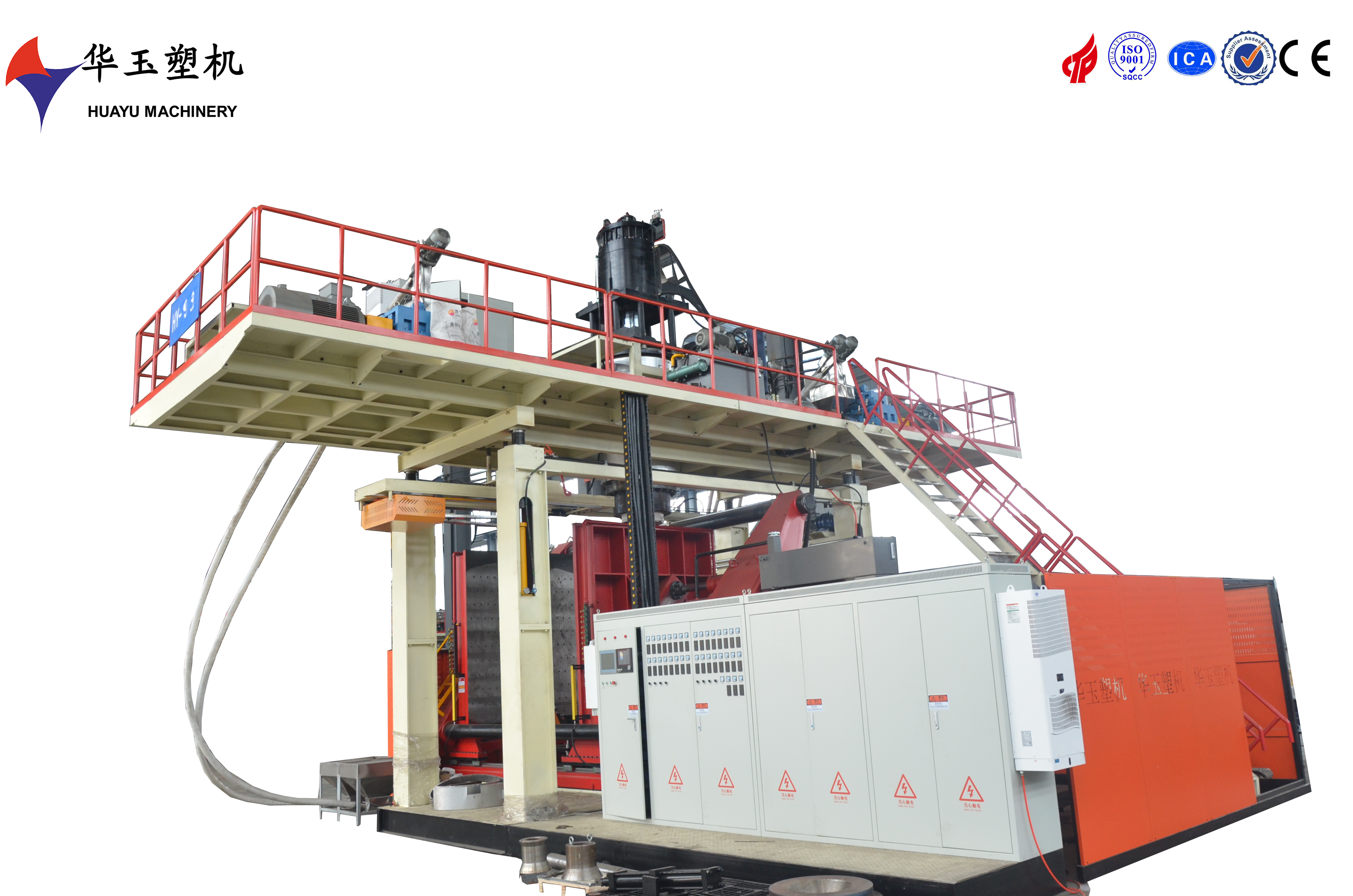

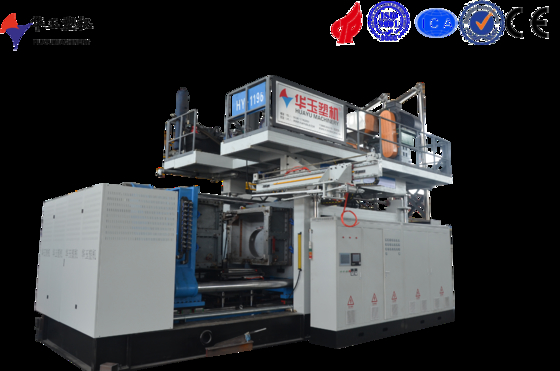

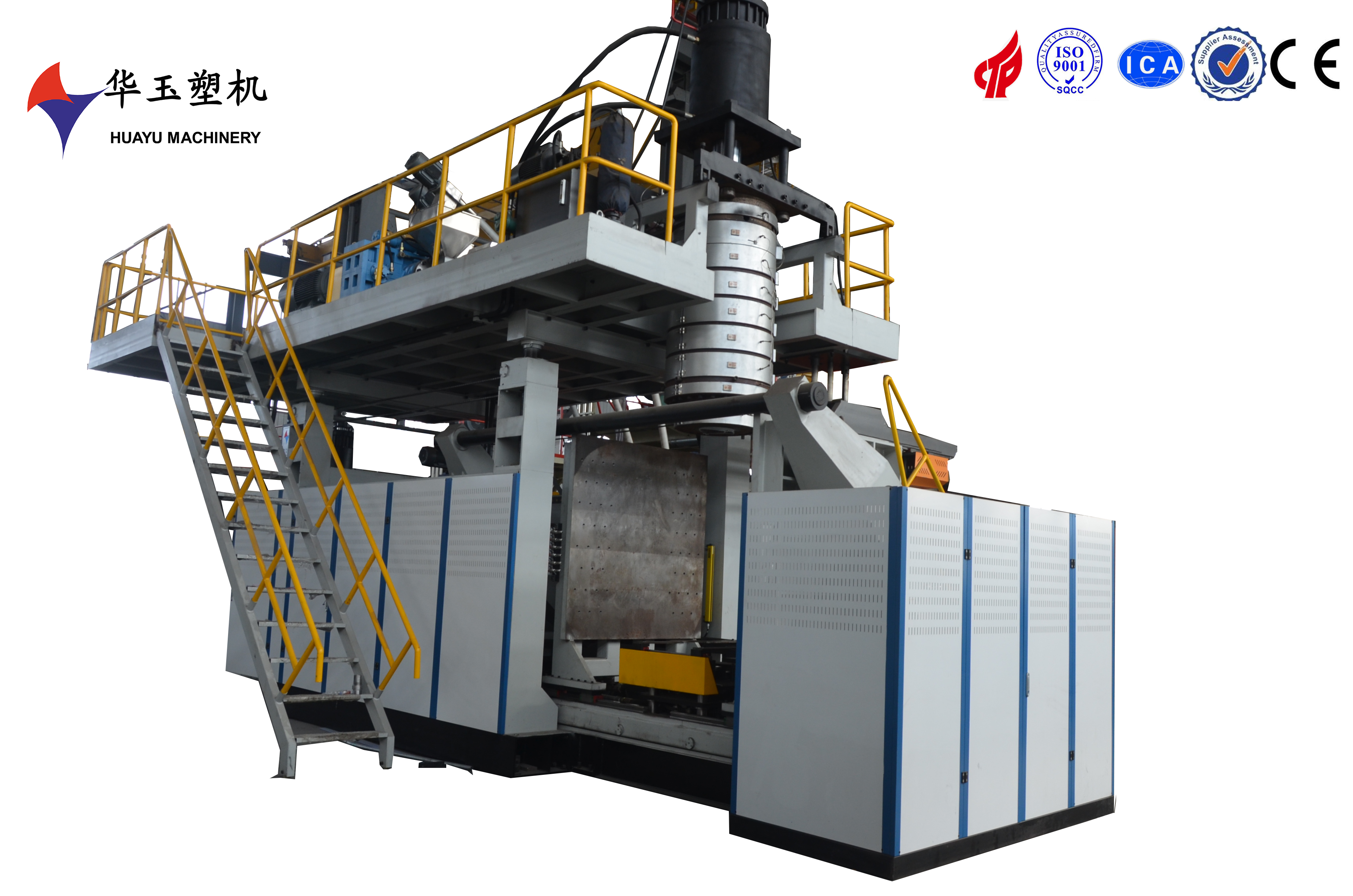

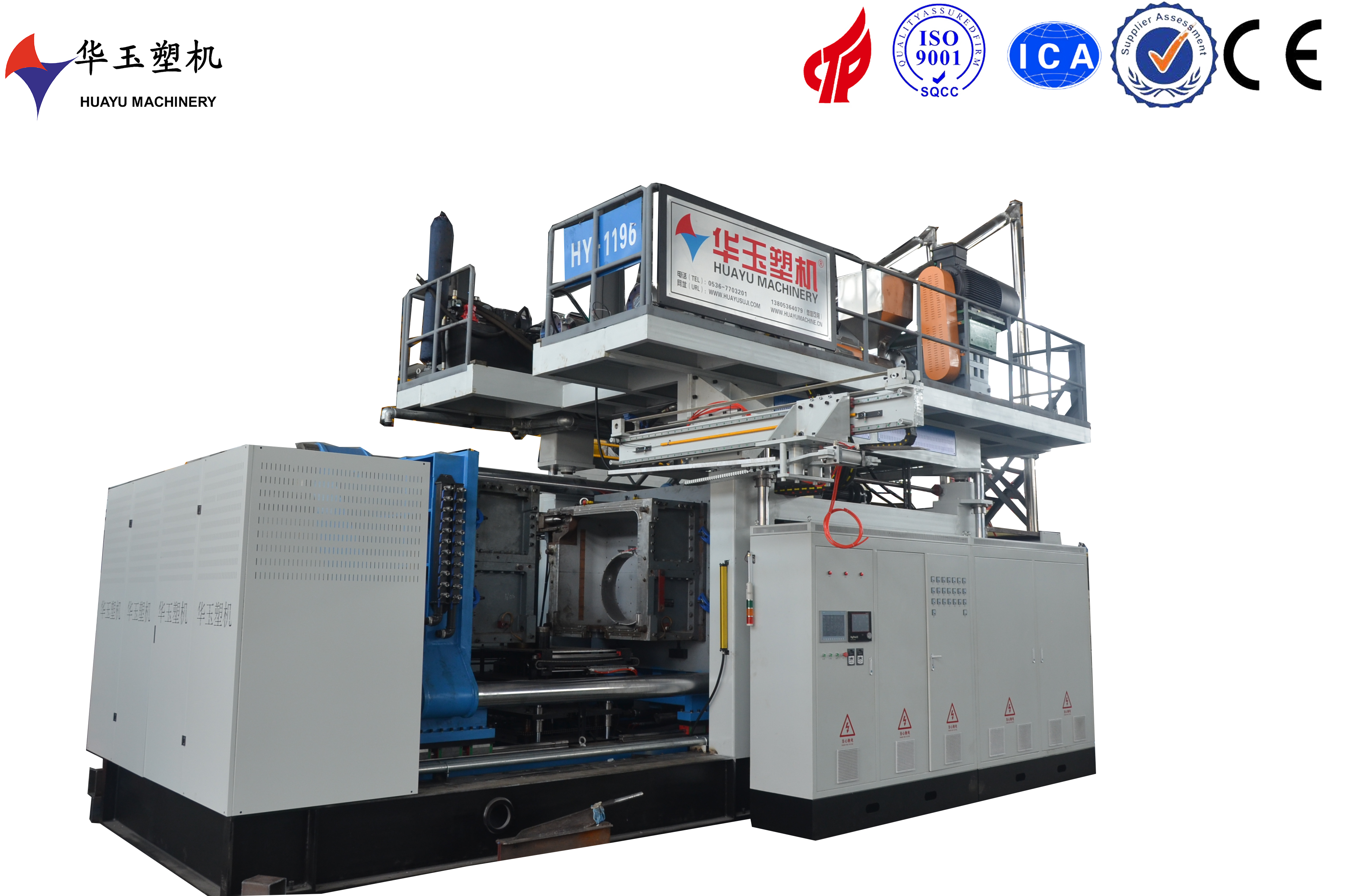

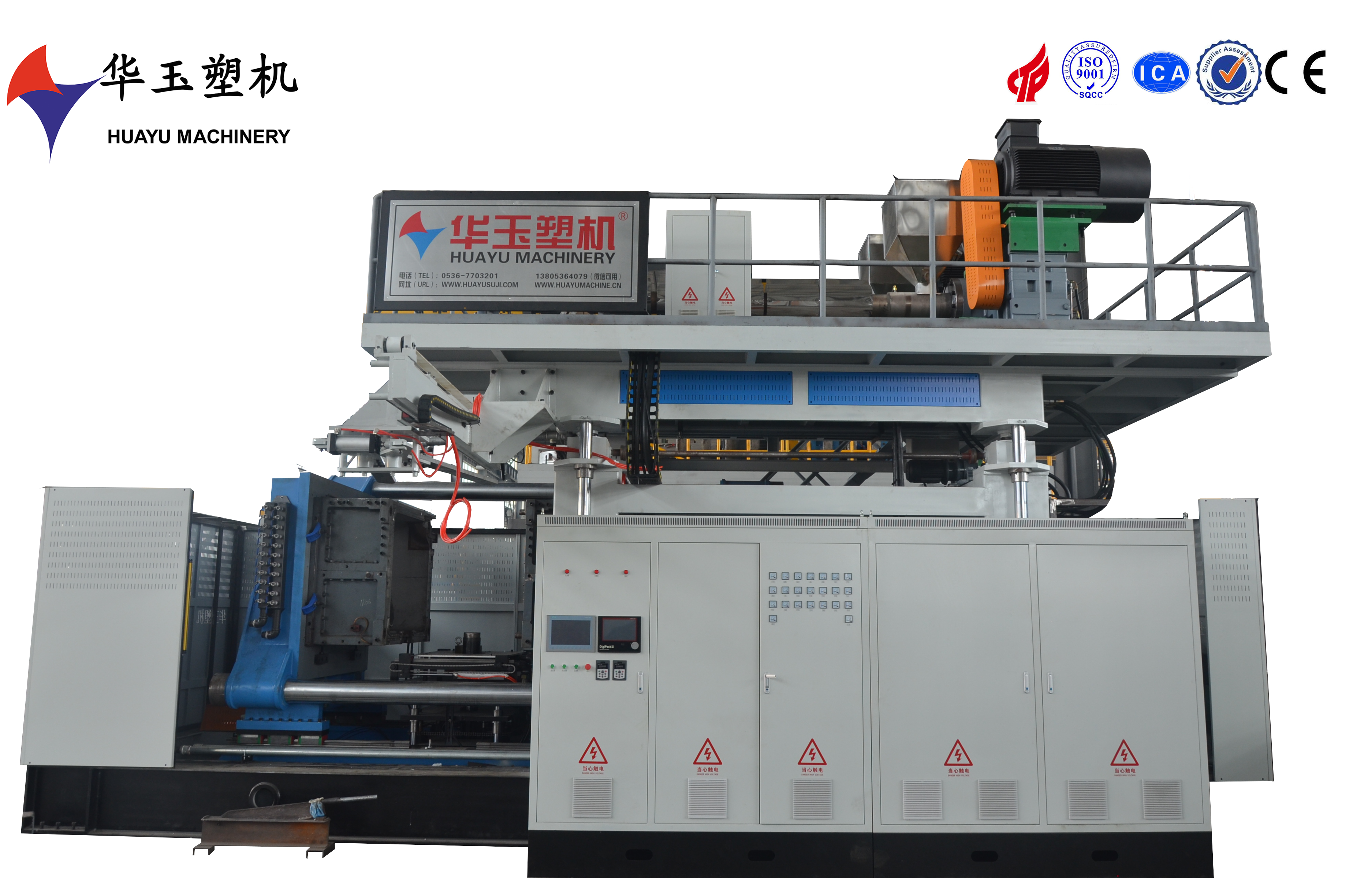

5000L 1-Layer Large Customized Water Tank Blow Molding Machine with Customized
| Herkunftsort | CHINA |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM5000-1 |
| Min Bestellmenge | 1 Set |
| Preis | 340000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | L/c, t/t |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Reduzierer | 250*2, 280*4 | Vorteile | 20 Jahre Erfahrung |
|---|---|---|---|
| Durchschnittliche Kraft | 390 kW | Reinigungsmethode | Einfache Reinigung |
| Maschinendimension | 8 mal 9 mal 6.5 | Maschinengröße | 7.2x3.3x5,5 m |
| Schraubenmaterial | 38CrMoAlA, Nitrierung | Garantie | 1 Jahr |
| Getriebe | Guomao | Extrusionsmotorleistung | 7.5-15 Kilowatt |
| Akkumulator-Kapazität | 60 kg | Vorteil | Effizienter und stabiler |
| Durchschnittsverbrauch | 350 kW | Maximaler Luftdruck | 0,8 MPa |
| Fütterungsmotor | 2.2kw*8 | ||
| Hervorheben | 5000L water tank blow molding machine,customized blow molding machine for water tanks,large 1-layer water tank molding machine |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This customized blow molding machine with a 5000L capacity and 1-layer co-extrusion is designed to meet specific production requirements. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's customizable design allows for various product shapes and sizes, making it suitable for multiple industries. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
ater pressure |
0.3MPa |
|
|
ooling water consumption |
75m3/h |
|
