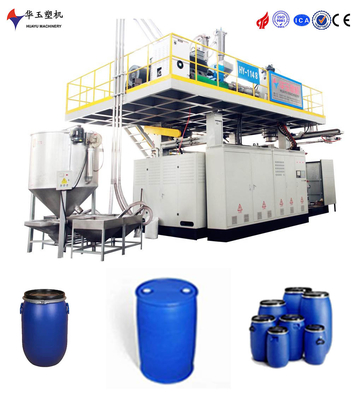

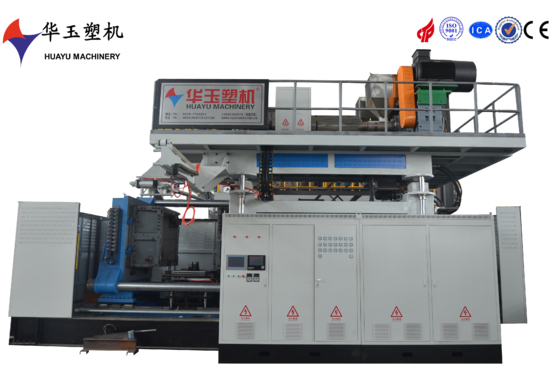

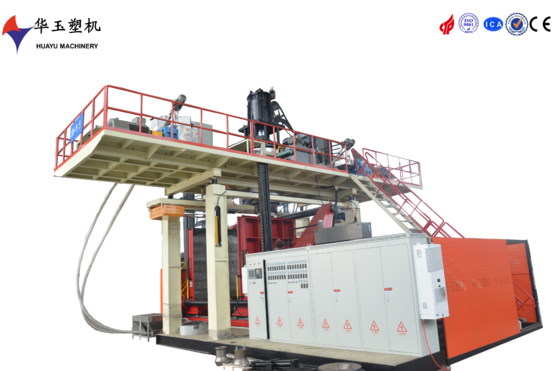

3000L 1-Layer Large Basic Water Tank Blow Molding Machine for Basic Production
| Herkunftsort | CHINA |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM3000-1 |
| Min Bestellmenge | 1 Set |
| Preis | 260000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | T/t, l/c |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Schraubenmaterial | 38CrMoAlA, Nitrierung | Automatisierungsstufe | Vollautomatisch |
|---|---|---|---|
| Plastifizierungskapazität | 400kg/h | Eimerstärke | nicht sehr dick |
| Anwendbares Material | HDPE | Wasserdruck | 0,3 MPA |
| Luftversorgung | 0.8*6 ((Mpa*Kubikmeter pro Minute) | Produktionsgeschwindigkeit | 100 bis 200 Stück/h |
| Klemmzylinder | 320+160*2 | After Sales | Übersee -Service |
| Maschinelle Abnahme | 8.5 mal 6 mal 7.2 | Produktpalette | Plastikflasche Jerrycan |
| Hohles Teilvolumen | 500-2000L | Kapazität | 1000 bis 5000 Liter |
| Maschinengröße | 5.0x2.3x3.6m | ||
| Hervorheben | 3000L water tank blow molding machine,1-layer water tank production machine,large basic water tank molding equipment |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This basic blow molding machine with a 3000L capacity and 1-layer co-extrusion is designed for fundamental production needs. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's straightforward design and reliable performance make it suitable for small to medium-scale production environments. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
70kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
