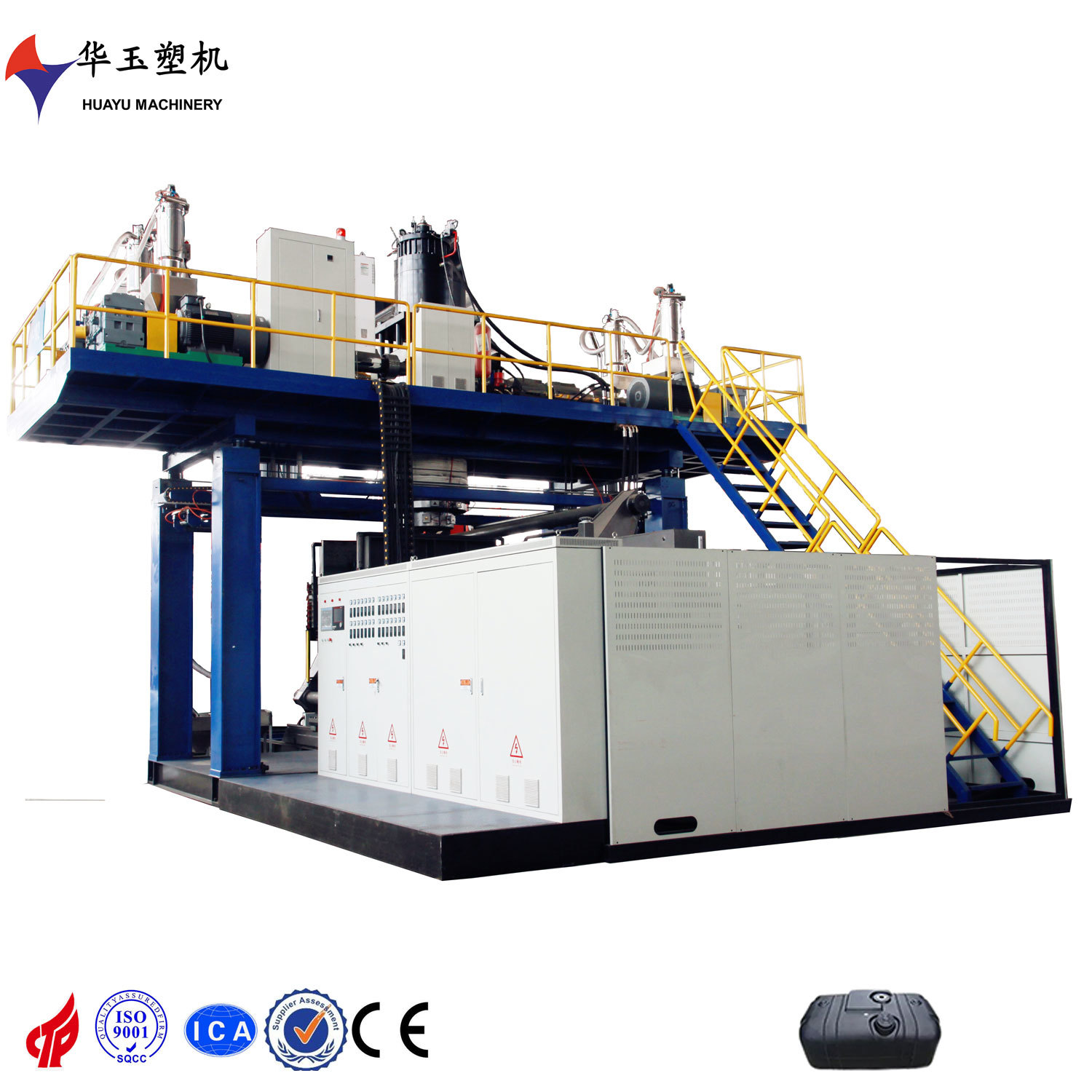

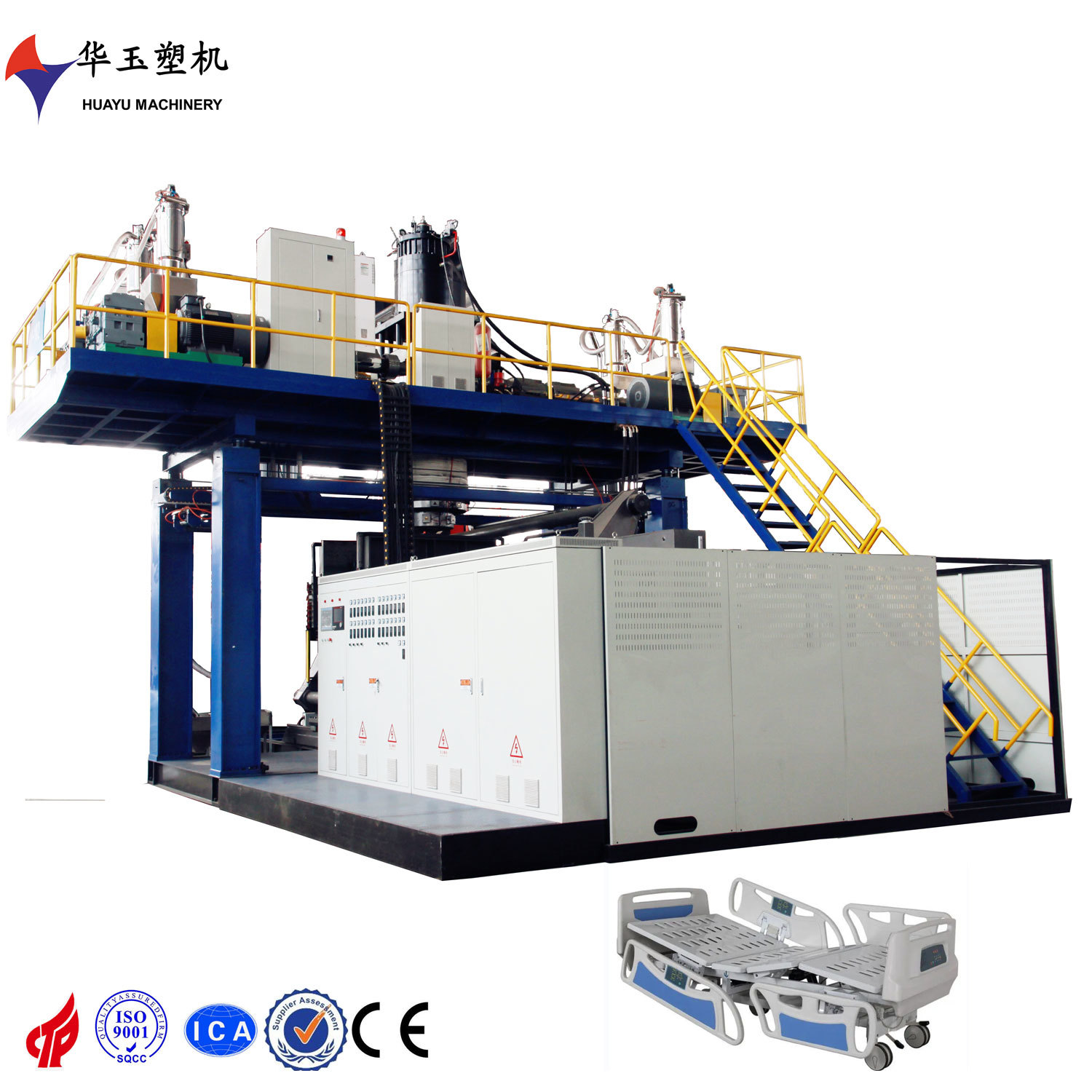

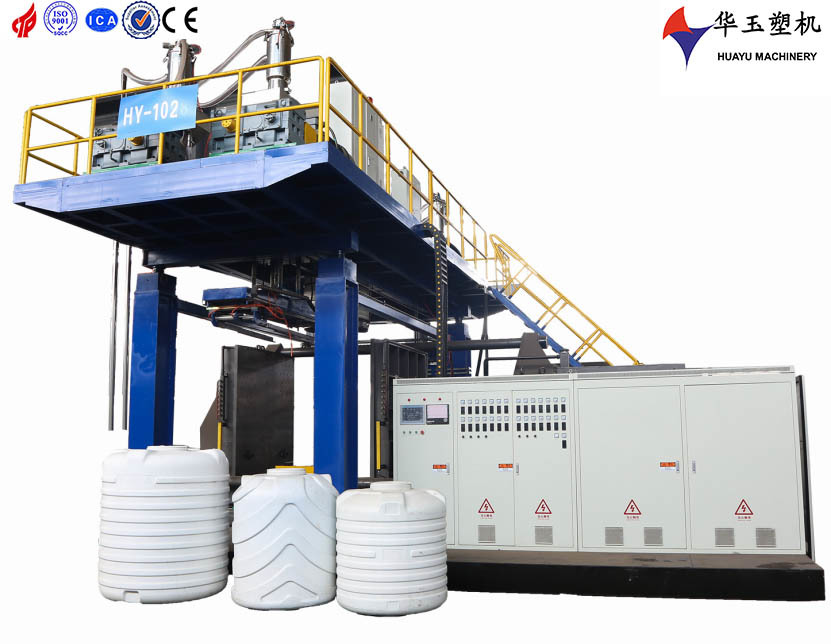

2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
| Herkunftsort | CHINA |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM2000-6 |
| Min Bestellmenge | 1 Set |
| Preis | 280000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | L/c, t/t |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Spannungsbereich | 220 V/380 V/415V/440 V | Extruder-Motor | 55 kW*8 |
|---|---|---|---|
| Durchschnittsverbrauch | 180 kW | Getriebe | Guomao |
| Parison | MOOG 200 Punkte | Servomotor | 48 kW |
| TATAOL POWER | 290 | Maschinenart | Hydraulisch angetrieben |
| Recyclingabilität | Recycelbar | Gewicht | 5 000 kg |
| Schrauben-Durchmesser | 150 mm | Abstand zwischen Platten | 1400-3800mm |
| Schimmelmaterial | Aluminium | Maximalvolumen | 5 Gallonen |
| Luftdruck | 0,8 MPa | ||
| Hervorheben | 2000L water tank blow molding machine,6-layer fully-automatic blow molding machine,large water tank molding machine with warranty |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This fully-automatic blow molding machine with a 2000L capacity and 6-layer co-extrusion is designed for large-scale production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its fully-automatic operation minimizes labor requirements and maximizes production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
1800*2200*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
300+140*2 |
|
|
clamping cylinder stroke |
2000mm |
|
|
clamping force |
1800KN |
|
|
distance between platens |
1000-3000mm |
|
|
max. mould size |
1600*2000mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
r consumption |
2.3m3/min |
|
|
ling method |
Circulating water |
|
|
er pressure |
0.3MPa |
|
|
Cooling water consumption |
60m3/h |
|
