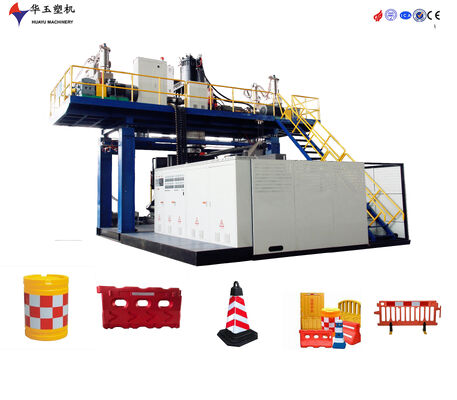

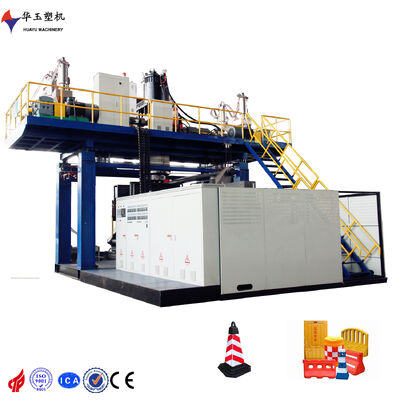

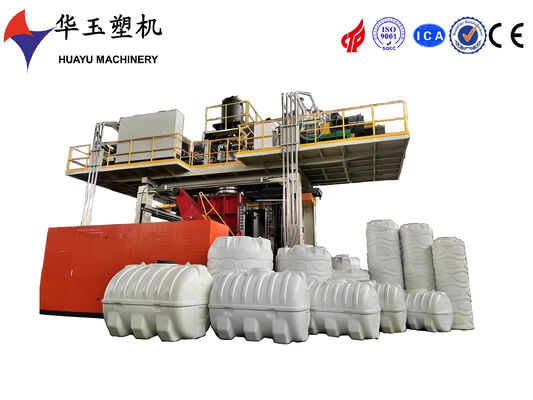

5000L Triple-Layer Large Capacity Water Tank Blow Molding Machine with Superior Corrosion Resistance
| Herkunftsort | China |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM5003 |
| Min Bestellmenge | 1 Satz |
| Preis | 420,000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | T/T, L/C |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Schraubdurchmesser | 100 mm*6 | Maschinentyp | Blasformmaschine |
|---|---|---|---|
| Parison | MOOG 200 Punkte | Jahr | 2024 |
| Maximaler Luftdruck | 0,8 MPa | Automatisch | Ja |
| Schlüsselwörter | Servomotor, Fernbedienung | Blasformtyp | Extrusionsblasenformen |
| Blasart | Extrusionsblasenformen | Plattengröße | 2200*2400*70mm (W*H*T) |
| Reichweite | 500-2000L | Touch-Screen | Siemens |
| Fütterungstyp | Vakuumbelastung | Anwendbare Branchen | Andere |
| Fütterungsmotor | 1.5kw*4 | ||
| Hervorheben | 5000L water tank blow molding machine,triple-layer water tank machine,large capacity corrosion-resistant water tank machine |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This 5000L triple-layer blow molding machine is designed for producing high-performance multi-layer water tanks. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Extrusion System |
||
|
Screw diameter |
150/150mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
30:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
160/160kw |
|
|
Reducer |
420/420 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
6kw*14 |
|
|
Plasticizing capacity |
1000kg/h |
|
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
100kw |
|
