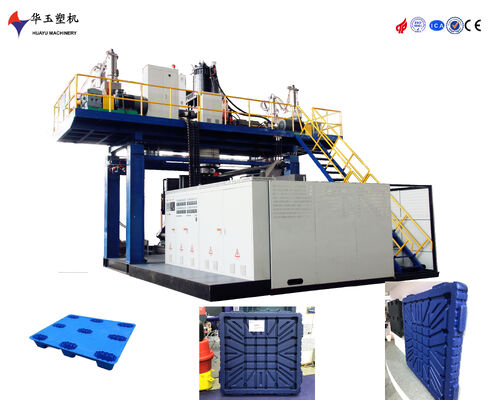

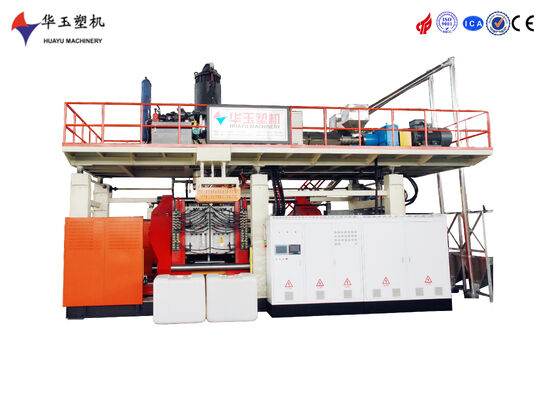

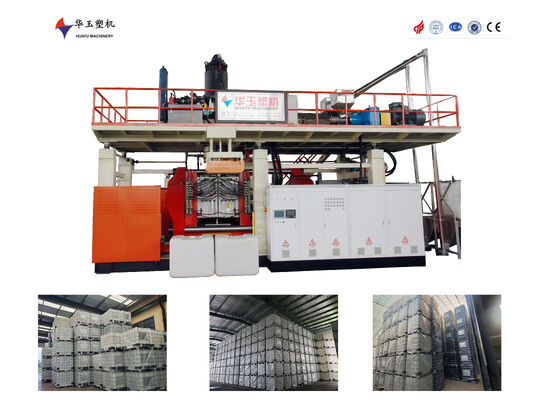

5000L Quintuple-Layer Large Capacity Water Tank Blow Molding Machine with Enhanced Mechanical Strength
| Herkunftsort | China |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM5005 |
| Min Bestellmenge | 1 Satz |
| Preis | 500,000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | T/T, L/C |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Gesamtgewicht | 38T | Servomotor | 30 kW |
|---|---|---|---|
| Verwenden | Wassertank | Maximale Tankkapazität | 5000 Liter |
| Schraubdurchmesser | 120 mm | Zylinderverschluss | 2000 mm |
| Akkumulator-Kapazität | 35 kg | Produkttyp | Blasformmaschine |
| Schimmelmaterial | Aluminium | Stromquelle | Elektrisch |
| Extruderdurchmesser | 90 bis 150 mm | Schimmelpilzhöhle | Einzel |
| Wasserdruck | 0,3 MPA | Stromversorgung | 380 V/50 Hz |
| Stoff für die Hopper | Edelstahl | ||
| Hervorheben | 5000L water tank blow molding machine,quintuple-layer water tank machine,large capacity blow molding machine |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This 5000L quintuple-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Clamping System |
||
|
platen size |
2400*2500*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2500mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1500-4000mm |
|
|
max. mould size |
2200*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
2m3/h |
|
