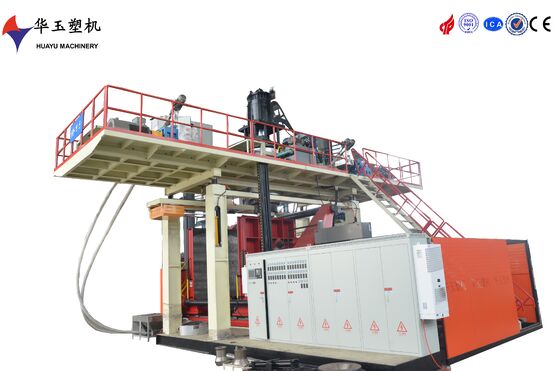

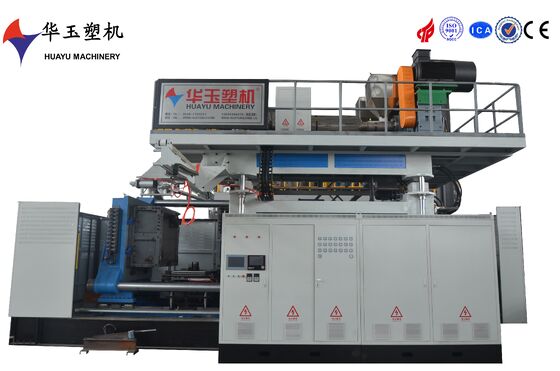

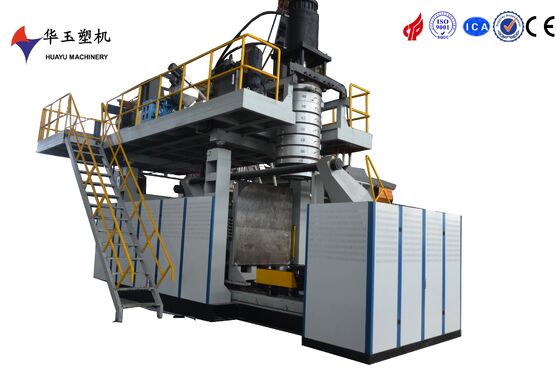

HUAYU 5000L Six-Layer Large Capacity Water Tank Blow Molding Machine with Energy-Efficient
| Herkunftsort | China |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM5006 |
| Min Bestellmenge | 1 Satz |
| Preis | 540,000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | T/T, L/C |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Garantie | 1 Jahr | Reduzierer | 315/375/315 |
|---|---|---|---|
| Verfügbare Produktion | Wasserbehälter, anderes Kunststoffprodukt | Produktivität | 15 Stück/h |
| Schimmelpilztyp | Einzelstation | Leistung | 126 kW |
| Klemmzylinder | 350+200*2 | Hydraulikventil | Yuken |
| Durchschnittlicher Verbrauch | 280 kW | Extrudermotor | 55kW*6 |
| Reichweite | Behälter 1000L IBC | Abstand zwischen Platten | 1400-3800mm |
| Luftdruck | 0,8 MPa | Luftversorgung | 0.8*6 ((Mpa*Kubikmeter pro Minute) |
| MOTOR | Siemens | ||
| Hervorheben | 5000L water tank blow molding machine,six-layer large capacity blow molding machine,energy-efficient water tank molding machine |
||
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
This 5000L six-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The six-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, and superior chemical resistance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
2m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1700L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
75kw |
|
|
oil tank capacity |
200L |
|
|
oil pump model |
Plunger pump22 |
|
|
oil pump motor |
7.5kw |
|
