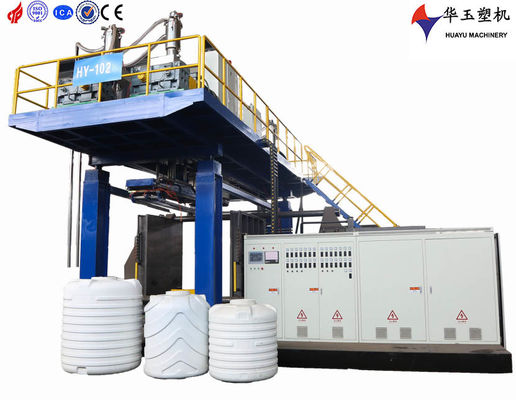

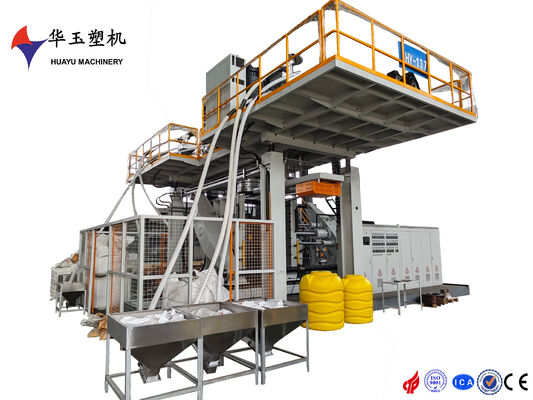

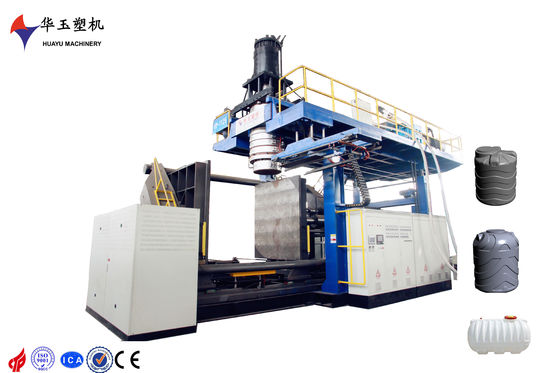

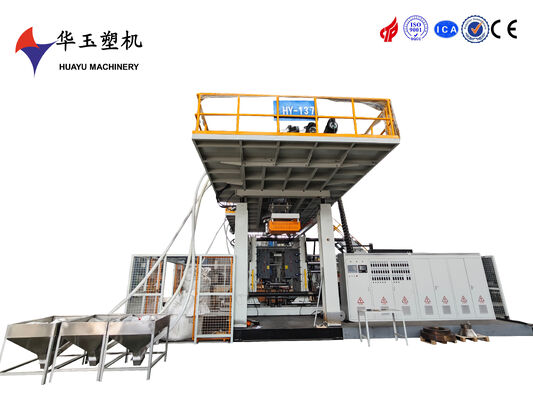

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production

  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
Herkunftsort China
Markenname HUAYU
Zertifizierung ISO9001 CE
Modellnummer HYBM-8.2200L -6 Schichten
Min Bestellmenge 1 Satz
Preis 280000 USD
Verpackung Informationen für den Containertransport in viele Teile zerlegt werden
Lieferzeit 4 Monate
Zahlungsbedingungen L/C, T/T
Versorgungsmaterial-Fähigkeit 1 Satz 120 Tage

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Stromspannung schwebend Gesamtleistung 550 kW
Durchschnittliche Kraft 320 kW Maschinenabmessung (L*W*H) 8,5*9,5*7
Produktivität 10 bis 24 Stück/h Schraubendurchmesser 90mm
Schrauben-L/D-Verhältnis 28 Akkumulator-Kapazität 60kg
Max. Formgröße 1600*2000mm ((W*H) Maximaler Luftdruck 0,8 MPa
Luftverbrauch 2.3m3/min
Hervorheben

6-layer structure Water Bucket Blow Molding System

,

2200L capacity Water Tank Blow Moulding Machine

,

High-speed continuous production Blow Molding Machine
Hinterlass eine Nachricht
Produkt-Beschreibung
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
  • 6-layer structure for superior durability and impact resistance
  • Strong barrier performance against moisture and contaminants
  • High-speed continuous production for large-scale orders
  • Layered material allocation reduces production costs
  • Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 55kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production 0
