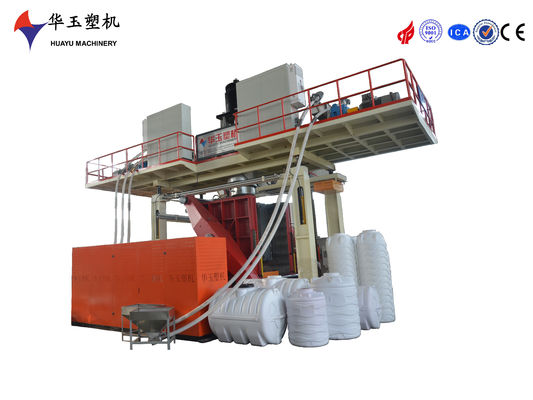

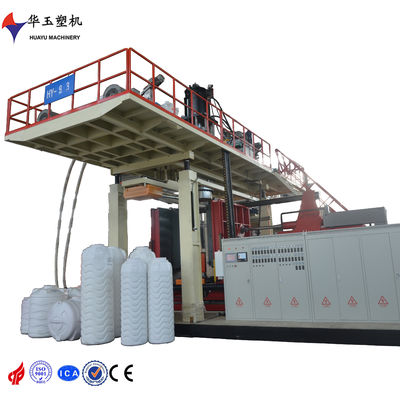

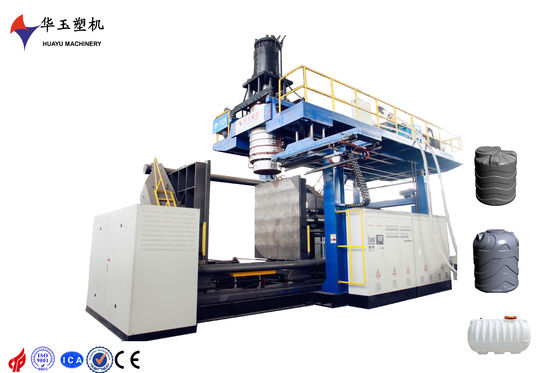

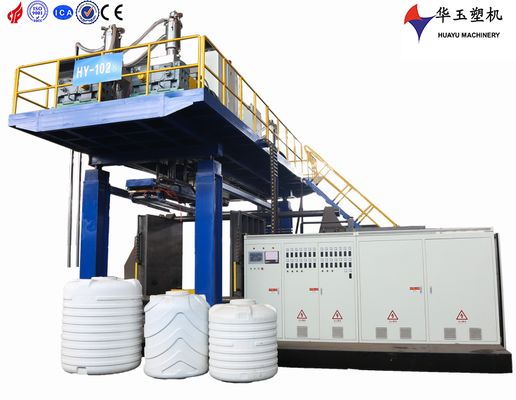

10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production

  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
Herkunftsort China
Markenname HUAYU
Zertifizierung ISO9001 CE
Modellnummer HYBM-2000L – 10 Schichten
Min Bestellmenge 1 Satz
Preis 340000 USD
Verpackung Informationen für den Containertransport in viele Teile zerlegt werden
Lieferzeit 4 Monate
Zahlungsbedingungen T/T, L/C
Versorgungsmaterial-Fähigkeit 1 Satz 120 Tage

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Stromspannung schwebend Gesamtleistung 570 kW
Durchschnittliche Kraft 320 kW Maschinenabmessung (L*W*H) 12,6*11*7,6
Produktivität 10 bis 24 Stück/h Schraubendurchmesser 100*6mm
Schrauben-L/D-Verhältnis 28 Akkumulator-Kapazität 60kg
Max. Formgröße 1600*2000mm ((W*H) Maximaler Luftdruck 0,8 MPa
Luftverbrauch 2.3m3/min
Hervorheben

10-Layer Water Tank Blow Moulding Machine

,

2000L Blow Molding Solution

,

Intelligent System Blow Moulding Equipment
Hinterlass eine Nachricht
Produkt-Beschreibung
Advanced 10-Layer 2000L Water Container Blow Molding Solution
Key Advantages
  • 10-layer structure enhances strength and impact resistance for large 2000L tanks
  • Superior barrier effect protects against UV radiation and contaminants to maintain water quality
  • Optimized design enables fast, stable high-volume production
  • Intelligent system reduces energy consumption and supports recyclable materials for eco-friendly operation
  • User-friendly controls and modular components simplify operation and maintenance
Hydraulic System Specifications
Main Oil Tank Capacity 1200L
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 45kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Servo motor technology provides energy efficiency, high performance, and low noise operation
Electronic Control System
Main Operation Panel 12" Touch Screen
Control System PLC (Programmable Logic Controller)
Thickness Control Points 200 Points
Temperature Control PLC Module
