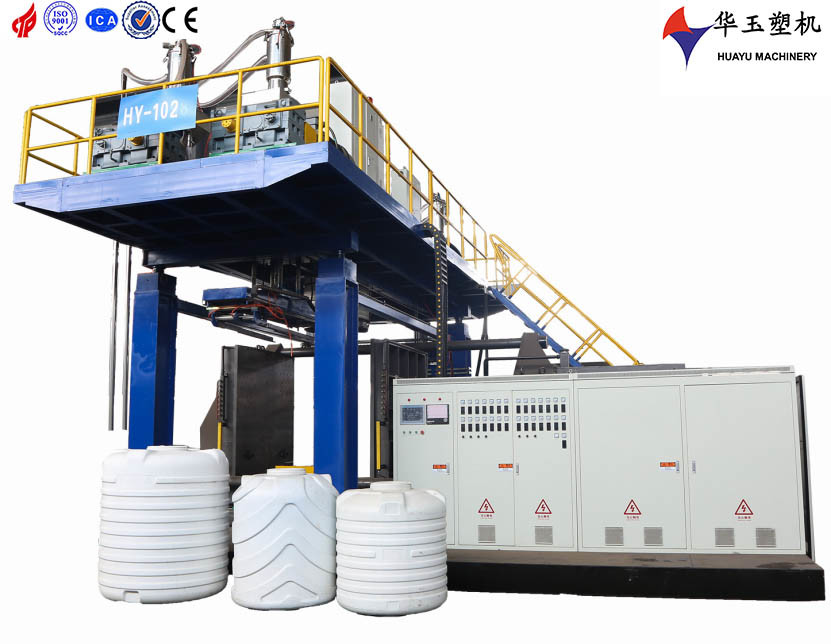

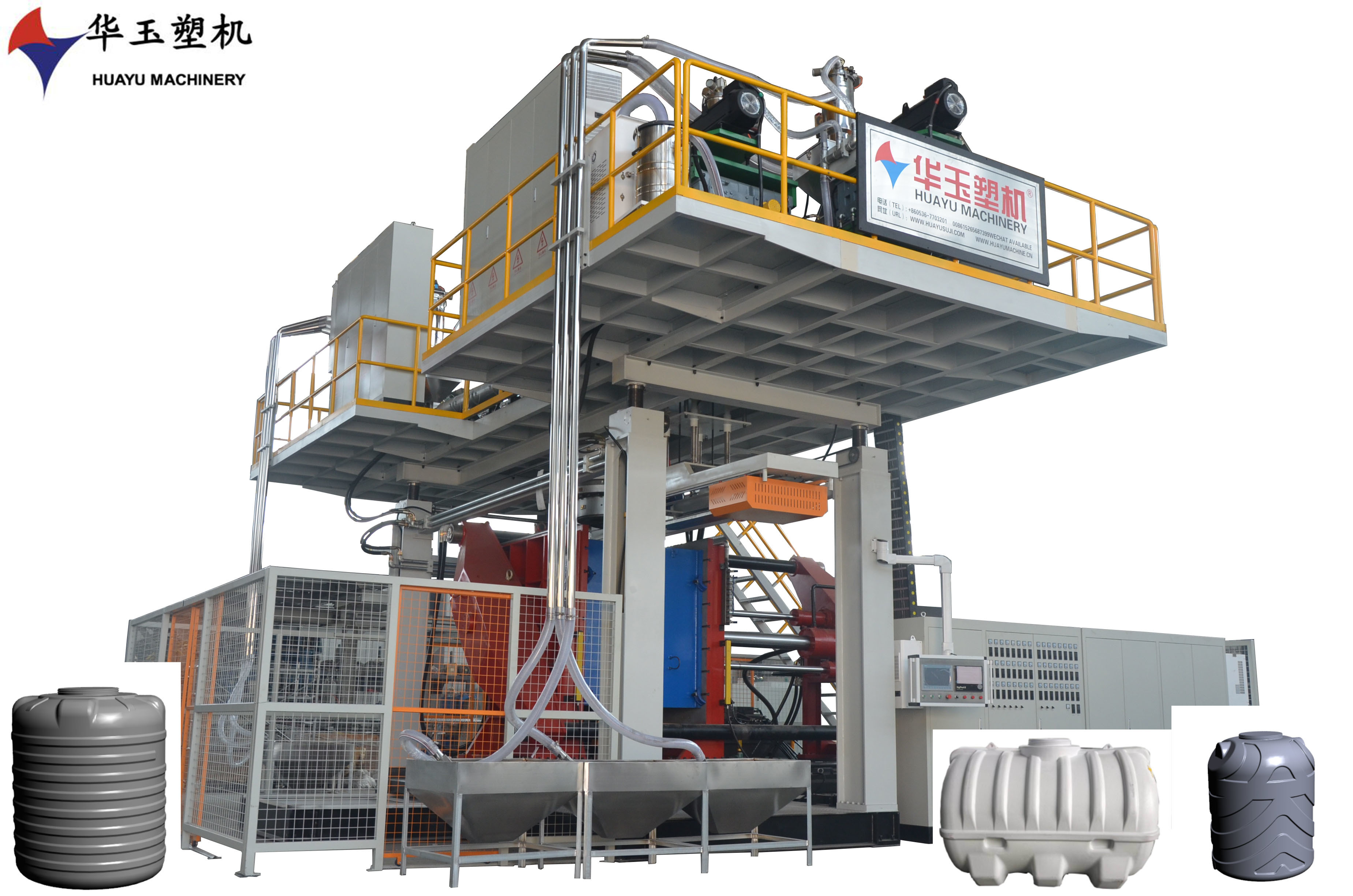

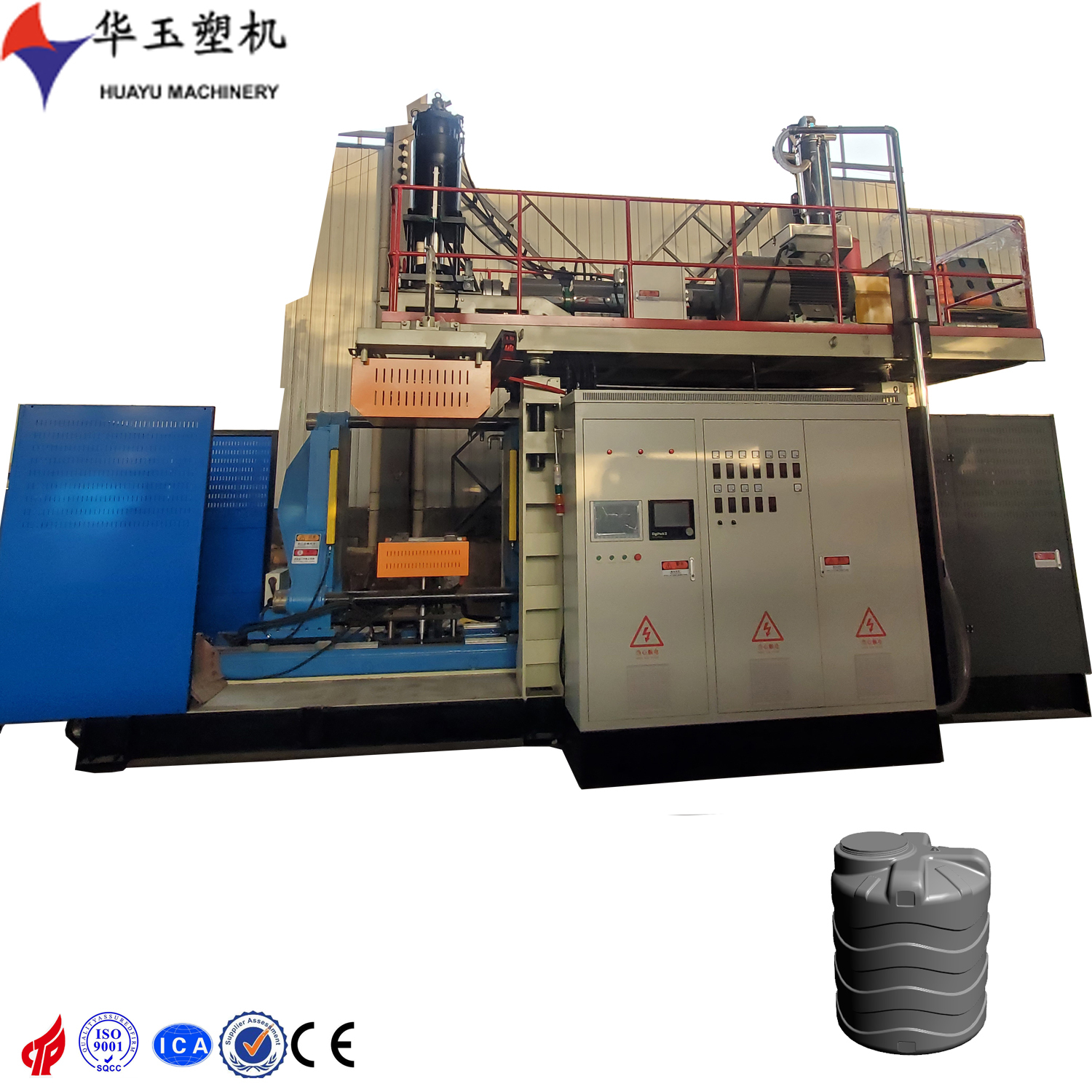

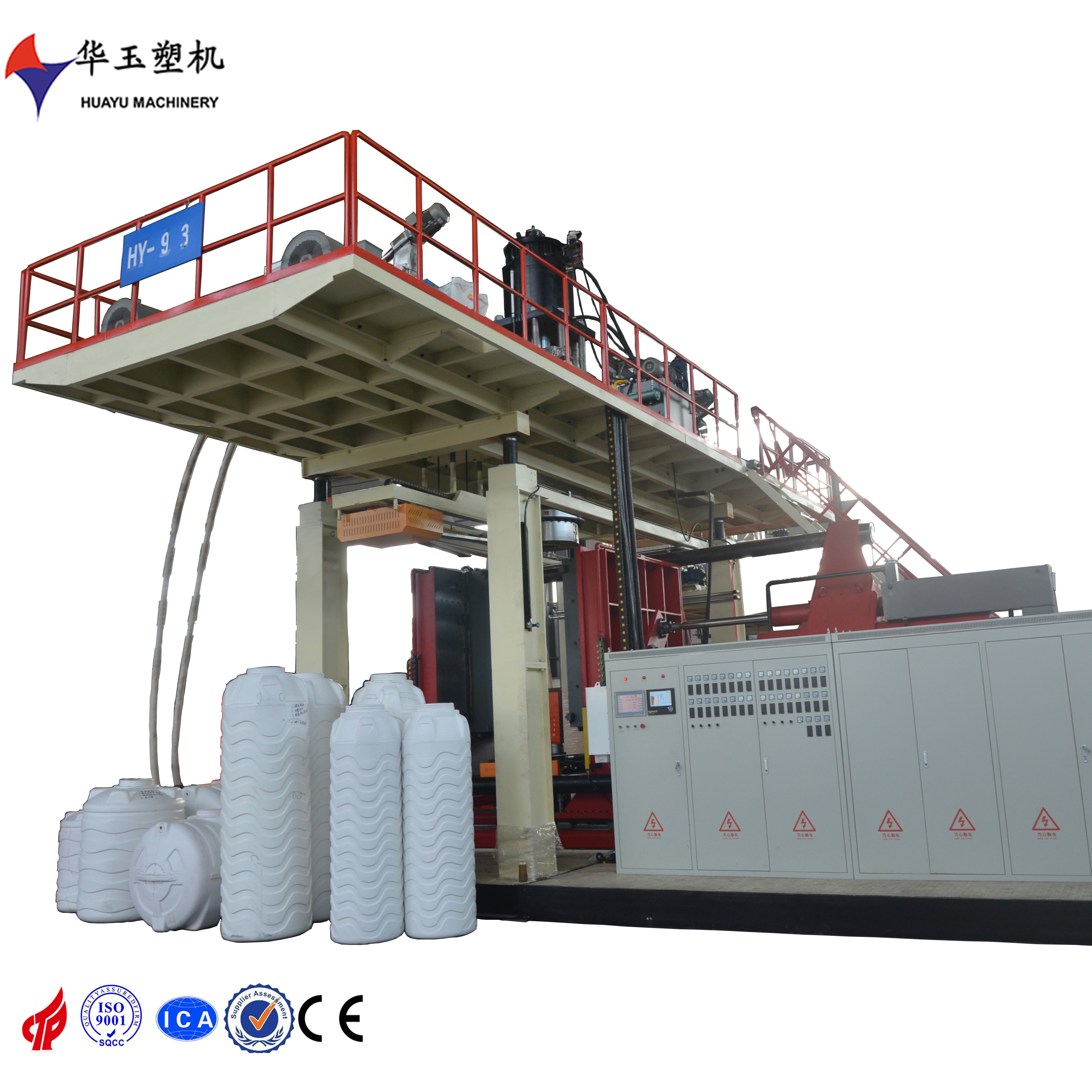

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
| Herkunftsort | China |
|---|---|
| Markenname | HUAYU |
| Zertifizierung | ISO9001 CE |
| Modellnummer | HYBM 1000L – 7 Schichten |
| Min Bestellmenge | 1 Satz |
| Preis | 280000 USD |
| Verpackung Informationen | für den Containertransport in viele Teile zerlegt werden |
| Lieferzeit | 4 Monate |
| Zahlungsbedingungen | T/T, L/C |
| Versorgungsmaterial-Fähigkeit | 1 Satz 120 Tage |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Stromspannung | schwebend | Gesamtleistung | 585 kW |
|---|---|---|---|
| Durchschnittliche Kraft | 385 kW | Maschinenabmessung (L*W*H) | 8 mal 9 mal 6.5 |
| Produktivität | 16-25 Stück/h | Schraubendurchmesser | 90mm*7 |
| Schrauben-L/D-Verhältnis | 28: 1 | Akkumulator-Kapazität | 50 kg |
| Max. Formgröße | 1400*1500mm (B*H) | Maximaler Luftdruck | 0,8 MPa |
| Luftverbrauch | 1.5 m3/min | ||
| Hervorheben | 7-Layer Structure Water Tank Blow Moulding Machine,1000L Capacity Blow Molding Equipment,High Efficiency Plastic Water Tank Making Machine |
||
Produkt-Beschreibung
Top-Tier 1000L 7-Layer Water Container Blow Molding Equipment
Advanced blow molding machine engineered for high-volume production of durable 7-layer water containers with superior performance characteristics.
Key Advantages
- Maximum Strength & Durability: 7-layer structure creates impact-resistant tanks built for long-term performance
- Superior Water Quality: Specialized barrier layer prevents oxygen ingress, reducing algae growth and maintaining water freshness
- Long-Lasting Outdoor Performance: UV-protected outer layer prevents fading, cracking, and degradation from sunlight exposure
- Significant Material Cost Savings: Strategic material placement allows use of premium resins only where needed, with cost-effective or recycled materials in core layers
- High Efficiency & Low Unit Cost: Optimized for fast cycle times and high-volume production, reducing per-unit manufacturing costs
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
